Cathedral of Creation
The “Cathedral of Creation” aims to fuse the gothic grandeur of the past with a contemporary design for manufacturing and assembly. Through its delicately sculpted modular design, the project creates sacred space by rekindling a once vibrant legacy of catholic architectural innovation.
Project
Cathedral
Year
2023
Client
Sacred Spaces design studio at TMU with Edward Wójs
Tools
Rhinoceros 7, Grasshopper, Adobe suite, Blender 3.4, Cycles, CNC milling, Model making, 3D Printing, Painting
Role
Project design done collaboratively, all presented images made independently.
Distinctions
Exhibited at DAS end of year show, published in 325 Magazine
Team
Ariel Weiss, Noah Spivak
Scroll down

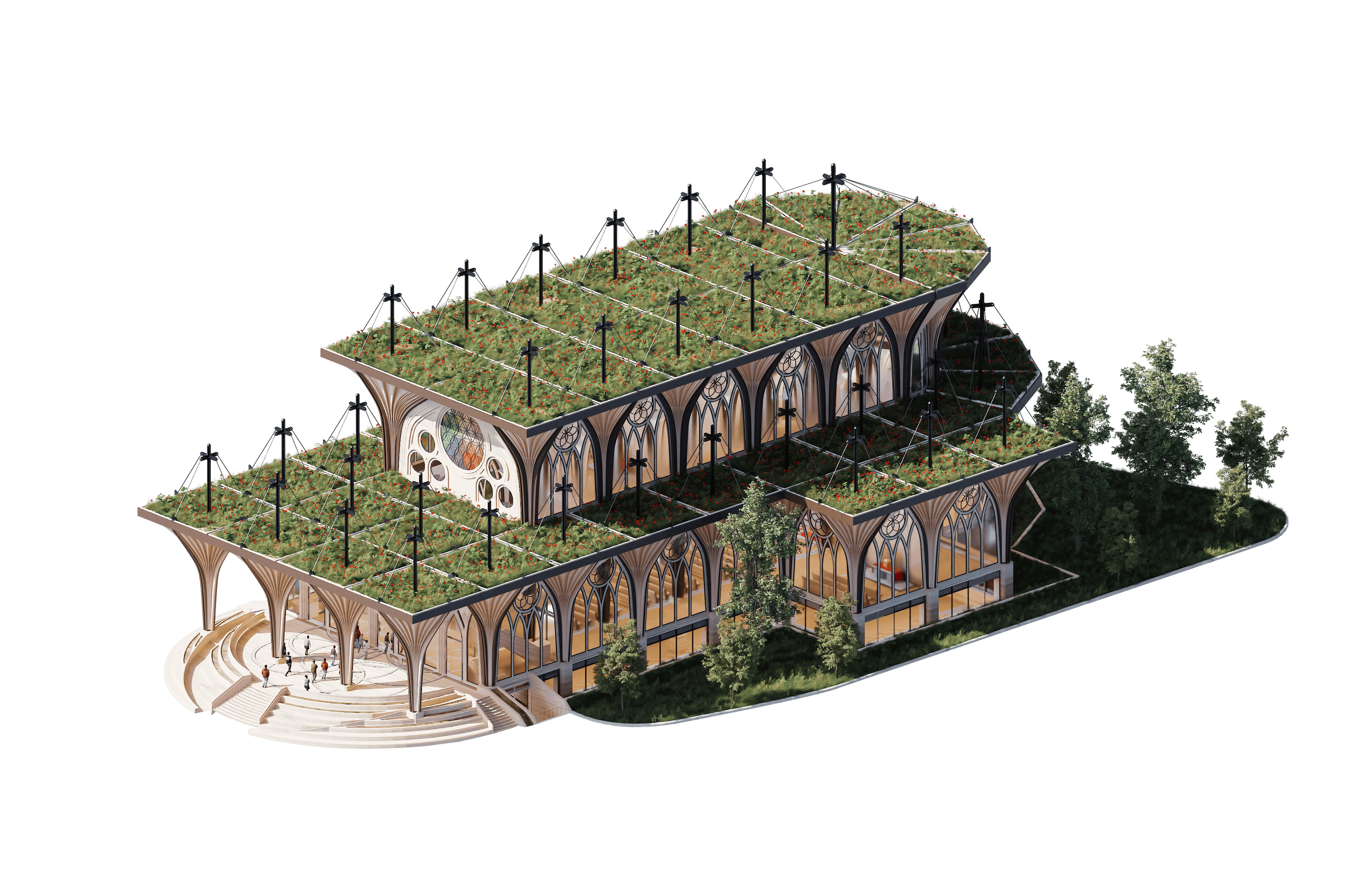

Axonometric render of the Cathedral

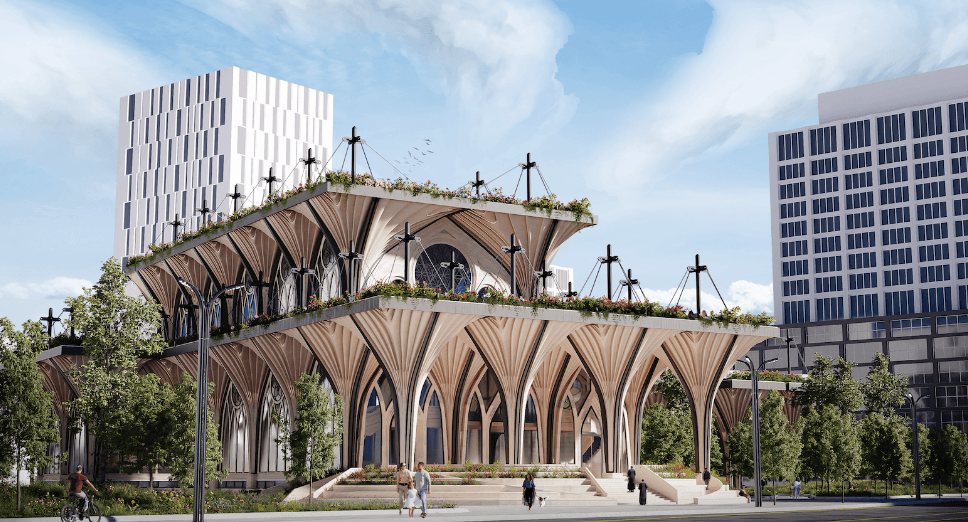

Exterior render of the cathedral.

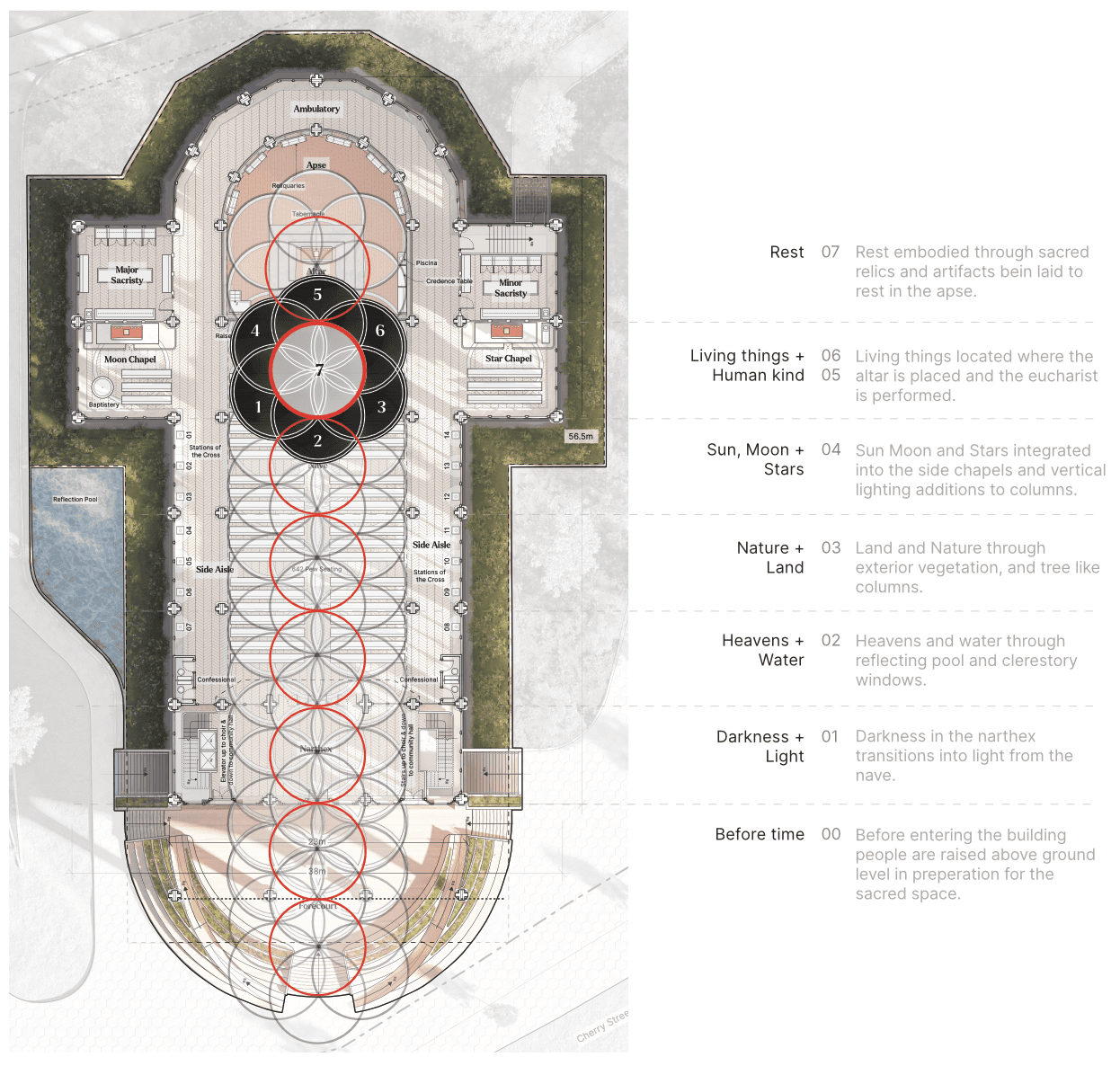

Floor plan sequence based off of the days of creation.

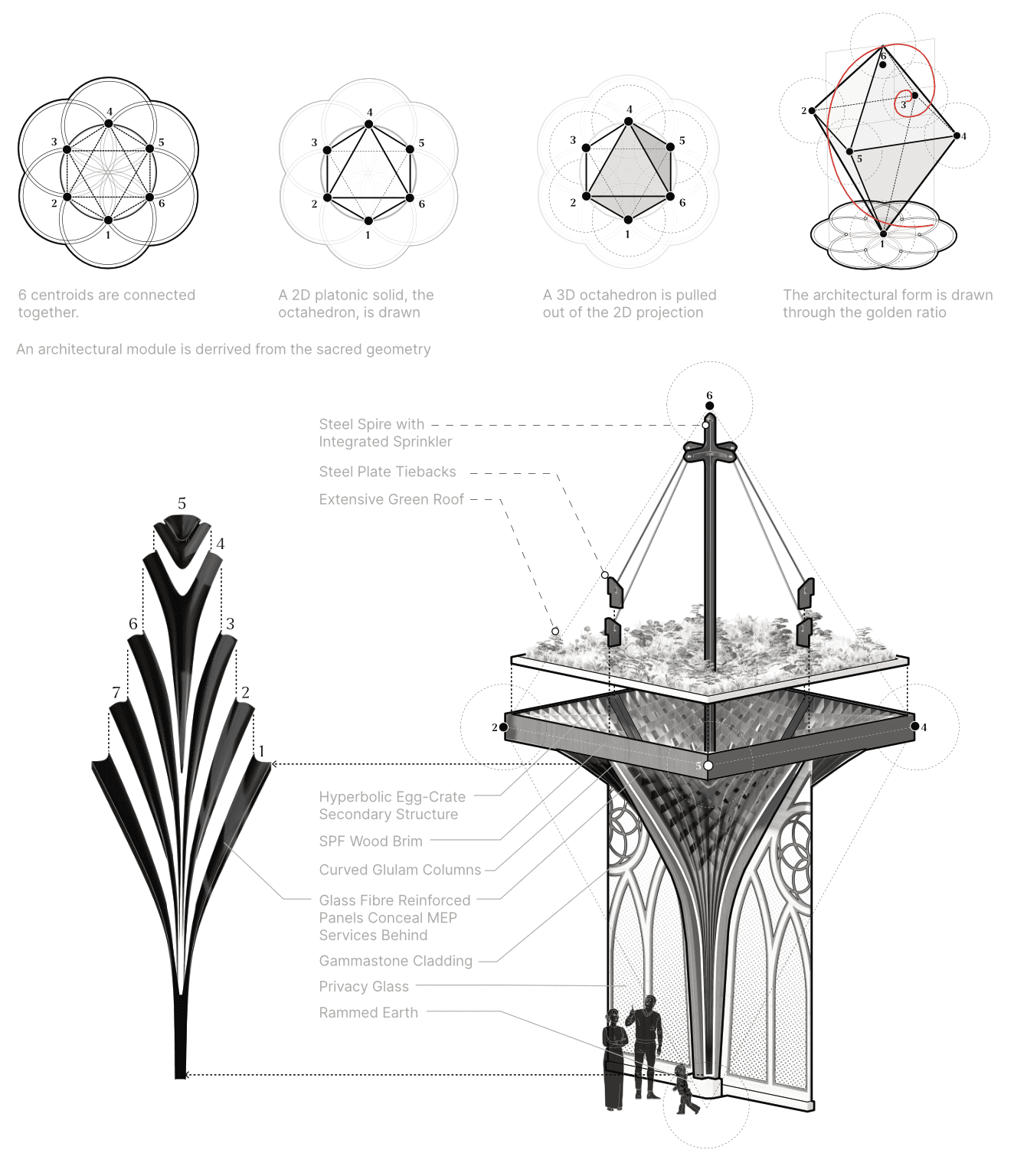

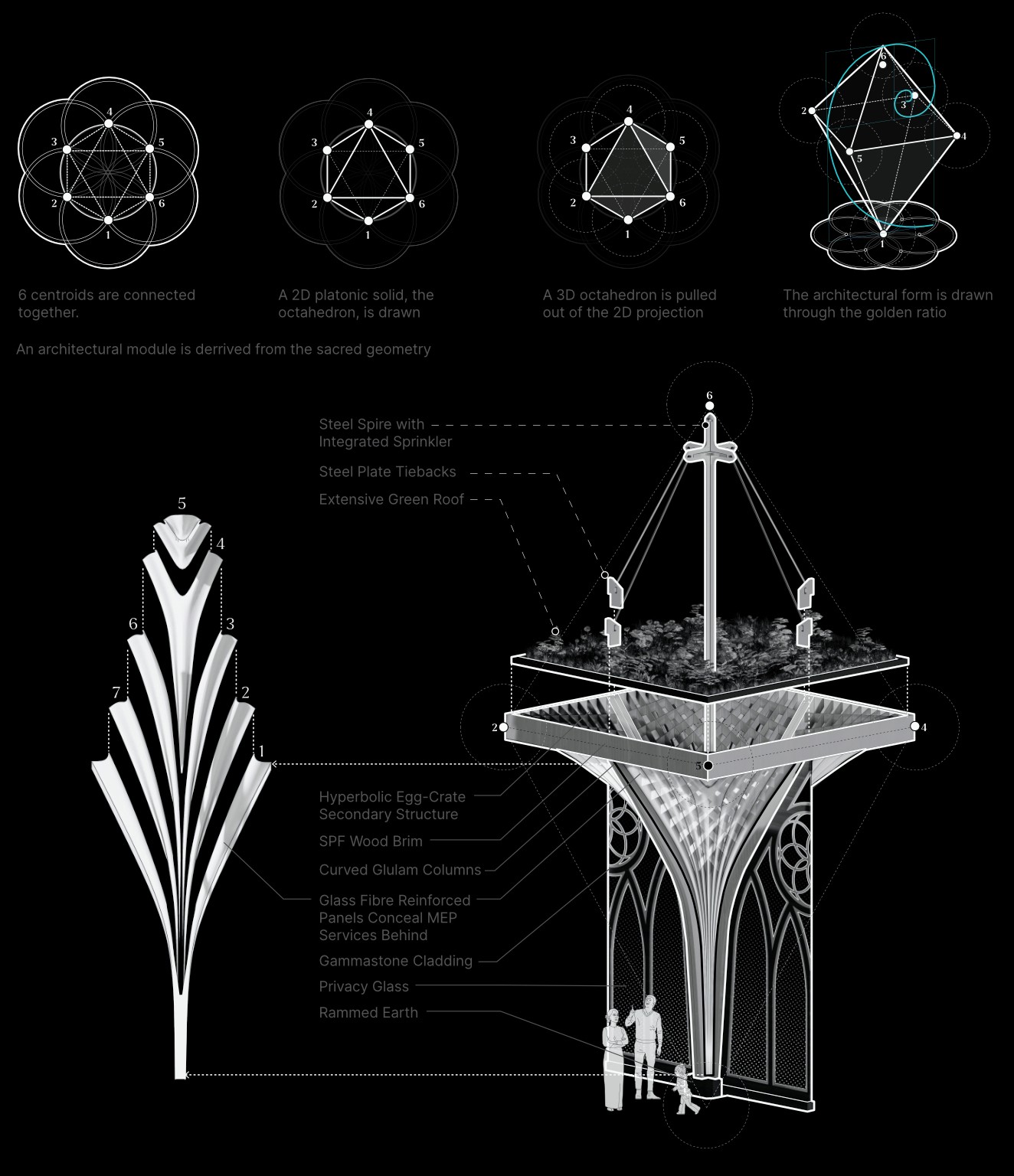

The church is based on a modular geometry tied to the days of creation.

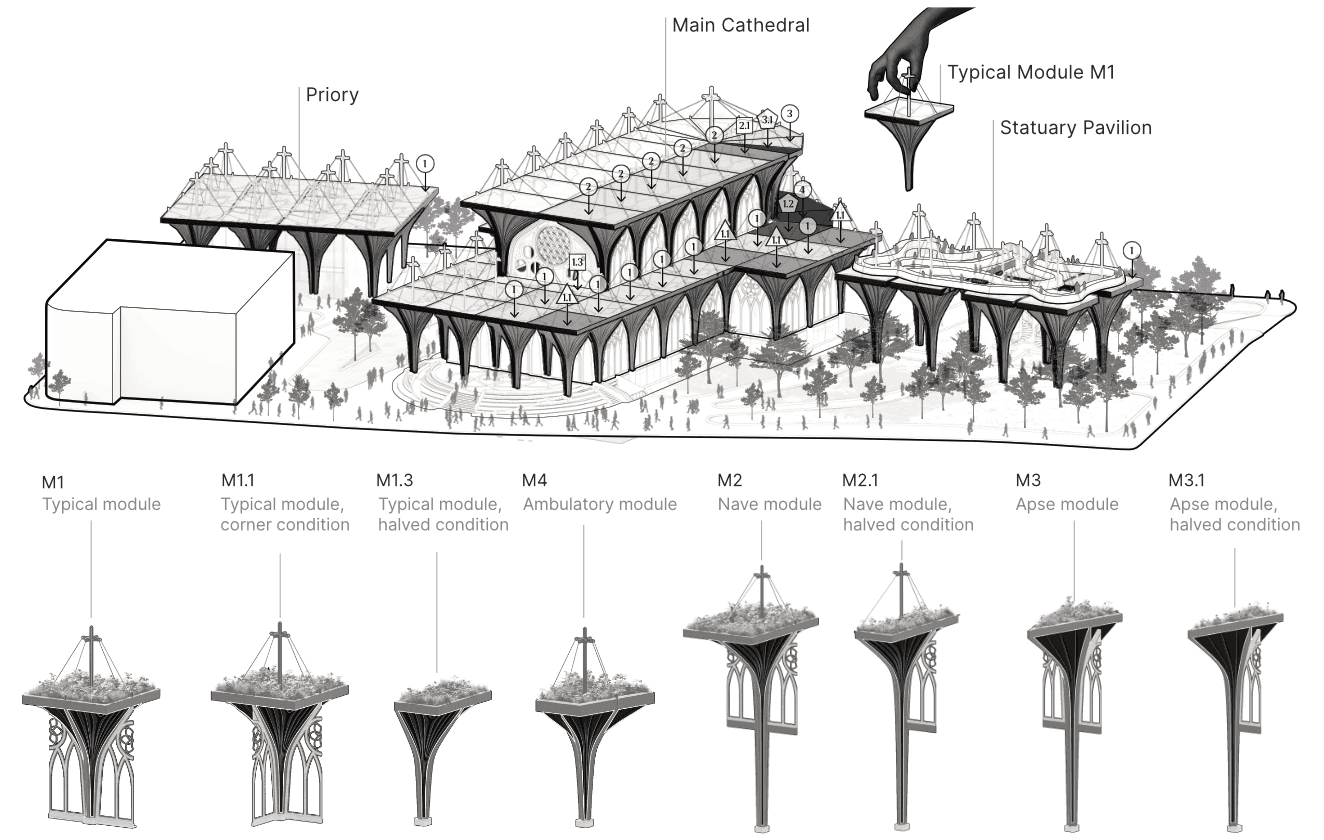

The modules have slight variations and are aggregated accordingly.

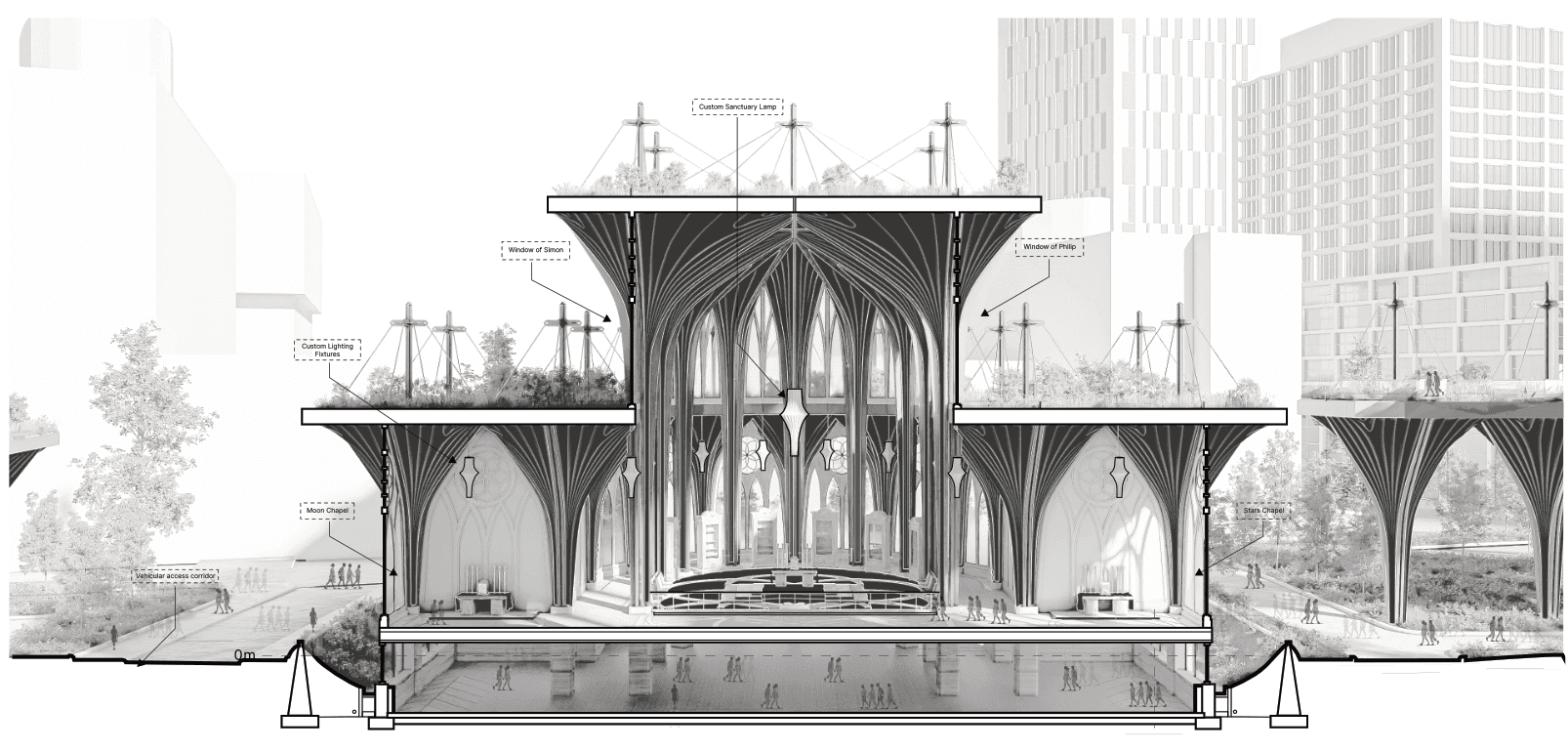

Sectional perspective cutting through the side chapels showing the modular structure.

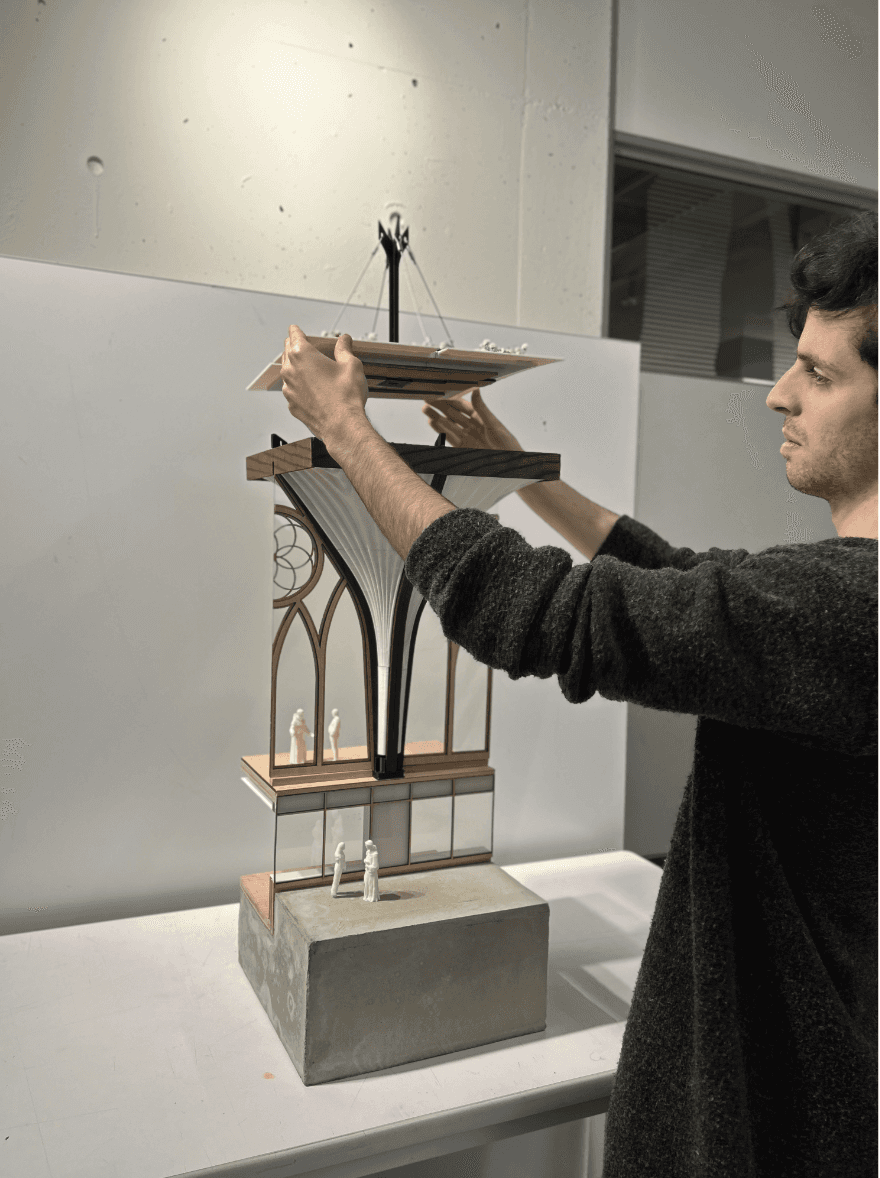

A 1:25 prototype of module m1 is cast from a concrete base, plywood floors and walls, and a roasted ash primary structure.

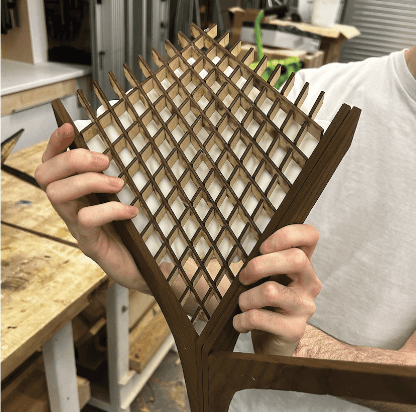

The hyperbolic structure is laser cut out of plywood, with the ash primary structure.

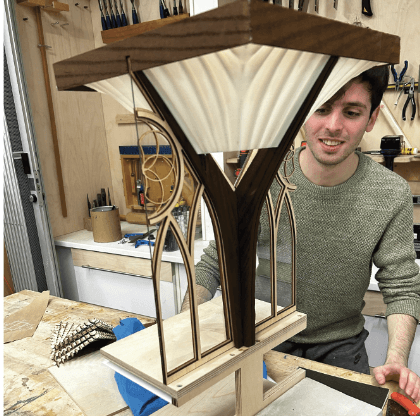

Curved 3D printed panels are hung from the laser cut plywood.
Interior render, walking through the side aisles towards the ambulatory.
